My redGTi restoration

Go down

My redGTi restoration  Empty My redGTi restoration

Post  STEVEGTI 30/01/21, 08:16 pm

I originally bought this around 2014 I believe just local to my house. It was sat for about 6 years as a old lady owned it but become too unwell to drive it anymore. while it was parked a van hit the door and quarter panel meaning they needed to be repaired.

I bought it with the intensions of breaking it but once i saw how clean it was I couldn't bring myself to scrap it. with one original owner and 55k miles it seemed like a waste. it also ran perfectly

My redGTi restoration  13528810
My redGTi restoration  11234910

_________________
Bringing back the old school
STEVEGTI
STEVEGTI
Admin

Posts : 1835
Join date : 2008-03-02
Age : 32
Location : london

Character sheet
first car: suzuki swift gti

http://www.uk-ssgti.com

Back to top Go down

My redGTi restoration  Empty Re: My redGTi restoration

Post  STEVEGTI 30/01/21, 08:19 pm

once work began it was all steam ahead

My redGTi restoration  20160111
My redGTi restoration  20160110

i was suprised at how clean it was under the carpet

My redGTi restoration  20160112
My redGTi restoration  20160113

the entire car was stripped and any small amount of rust removed and prepped for underseal

My redGTi restoration  20160116
My redGTi restoration  20160114
My redGTi restoration  20160115
My redGTi restoration  20160117
My redGTi restoration  20160119
My redGTi restoration  20160118
My redGTi restoration  20160122
My redGTi restoration  20160120
My redGTi restoration  20160121

_________________
Bringing back the old school
STEVEGTI
STEVEGTI
Admin

Posts : 1835
Join date : 2008-03-02
Age : 32
Location : london

Character sheet
first car: suzuki swift gti

http://www.uk-ssgti.com

Back to top Go down

My redGTi restoration  Empty Re: My redGTi restoration

Post  STEVEGTI 30/01/21, 08:26 pm

Then it was time to start prepping the body for paint. A year or so had passed by this time lol

My redGTi restoration  20160123
My redGTi restoration  20160510
My redGTi restoration  20160511
My redGTi restoration  20160512
My redGTi restoration  20160711
My redGTi restoration  20160710
My redGTi restoration  13680610
My redGTi restoration  13728910

Back in these times I had a spray booth in my unit so it made sense to use it.

Steve

_________________
Bringing back the old school
STEVEGTI
STEVEGTI
Admin

Posts : 1835
Join date : 2008-03-02
Age : 32
Location : london

Character sheet
first car: suzuki swift gti

http://www.uk-ssgti.com

Back to top Go down

My redGTi restoration  Empty Re: My redGTi restoration

Post  STEVEGTI 30/01/21, 08:30 pm

Alot of parts were then arriving including new suspension bushes etc. I also added swift sport front calipers as its a easy bolt on mod and made getting pads easier with more options.
My redGTi restoration  20160810
My redGTi restoration  20170710
My redGTi restoration  13707610
My redGTi restoration  20160811
My redGTi restoration  20160812

_________________
Bringing back the old school
STEVEGTI
STEVEGTI
Admin

Posts : 1835
Join date : 2008-03-02
Age : 32
Location : london

Character sheet
first car: suzuki swift gti

http://www.uk-ssgti.com

Back to top Go down

My redGTi restoration  Empty Re: My redGTi restoration

Post  STEVEGTI 31/01/21, 10:05 pm

The car then recieved a new windscreen and trims and new rear window rubbers and Lower garnishes.

My redGTi restoration  Img_2012
My redGTi restoration  Img_2010
My redGTi restoration  Img_2011


Im currently trying to find someone to finish the rest of the paintwork as with work and life commitments I do not have the time to do so.

Steve

_________________
Bringing back the old school
STEVEGTI
STEVEGTI
Admin

Posts : 1835
Join date : 2008-03-02
Age : 32
Location : london

Character sheet
first car: suzuki swift gti

http://www.uk-ssgti.com

Back to top Go down

My redGTi restoration  Empty Re: My redGTi restoration

Post  STEVEGTI 31/01/21, 10:12 pm

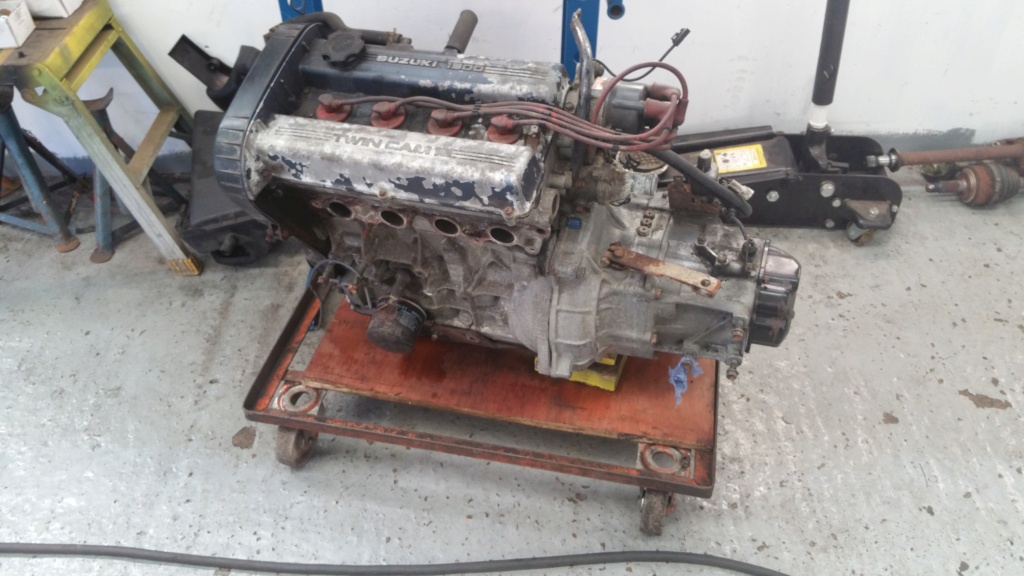

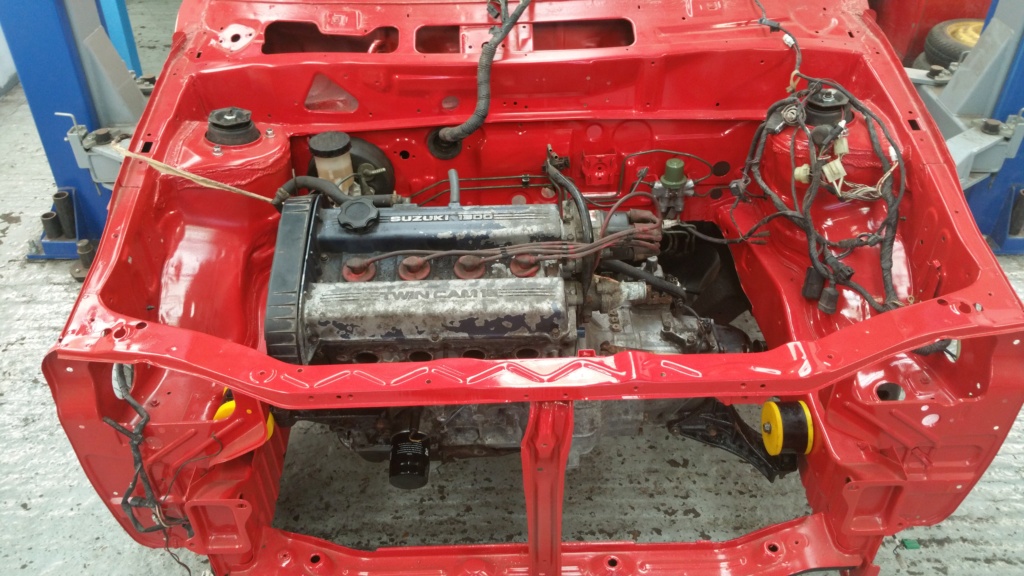

Attention then turned to the engine bay and and making a few parts to build it up. I did plan to boost it but the final incarnation will probably go back to a stock G13B layout and sell the catch can on and intake etc. I have other cars that are better at going fast now so i think the gti will do fine as a stock ish retro ride. one day perhaps it will get a M16 set up for the benifits of a stronger gearbox and 6 speed options

The engine also received all new genuine timing belt and water pump kit. new dizzy and arm new fluids new clutch  etc.

I was amazed with how clean the engine was inside.

My redGTi restoration  20180610
My redGTi restoration  20180711
My redGTi restoration  20180710
My redGTi restoration  20180712
My redGTi restoration  Img_2014
My redGTi restoration  Img_2013
My redGTi restoration  Img_2016
My redGTi restoration  Img_2017
My redGTi restoration  Img_2015
My redGTi restoration  Img_2019
My redGTi restoration  Img_2020
My redGTi restoration  Img_2018
My redGTi restoration  Img_2021
My redGTi restoration  Img_2022

_________________
Bringing back the old school
STEVEGTI
STEVEGTI
Admin

Posts : 1835
Join date : 2008-03-02
Age : 32
Location : london

Character sheet
first car: suzuki swift gti

http://www.uk-ssgti.com

Back to top Go down

My redGTi restoration  Empty Re: My redGTi restoration

Post  SUZUKI ROCKS 04/02/21, 02:46 pm

Hi Steve.

Build is looking good. Havent been on here for years! Glad its still going and good to see some familiar names from the pasts still around.

Where did you get the rear window rubber/weatherstips upper and lower? Mine have perished and will need replacing.

Thanks mate.

SUZUKI ROCKS
SUZUKI ROCKS

Posts : 241
Join date : 2008-03-14
Age : 44
Location : Midlands

Back to top Go down

My redGTi restoration  Empty Re: My redGTi restoration

Post  STEVEGTI 04/02/21, 07:35 pm

Hell mate everyone is crawling out the wood work ! good there's a few of us left. i got it all from Suzuki no point trying to find stuff like that elsewhere now really.

Steve

_________________
Bringing back the old school
STEVEGTI
STEVEGTI
Admin

Posts : 1835
Join date : 2008-03-02
Age : 32
Location : london

Character sheet
first car: suzuki swift gti

http://www.uk-ssgti.com

Back to top Go down

My redGTi restoration  Empty Re: My redGTi restoration

Post  SUZUKI ROCKS 04/02/21, 09:01 pm

Ok, thanks pal.

Didn’t think it would even be available from Suzuki anymore.
Must have cost Bomb!
SUZUKI ROCKS
SUZUKI ROCKS

Posts : 241
Join date : 2008-03-14
Age : 44
Location : Midlands

Back to top Go down

My redGTi restoration  Empty Re: My redGTi restoration

Post  STEVEGTI 04/02/21, 09:16 pm

They were 90 quid each for the lower trims the rear window ones I actually had already. There the same. For the regular swift so they are only upto 19 years old lol

Steve

_________________
Bringing back the old school
STEVEGTI
STEVEGTI
Admin

Posts : 1835
Join date : 2008-03-02
Age : 32
Location : london

Character sheet
first car: suzuki swift gti

http://www.uk-ssgti.com

Back to top Go down

My redGTi restoration  Empty Re: My redGTi restoration

Post  walter 05/02/21, 07:20 pm


I have not been here for years.
But this is a nice rebuild Very Happy
Ceep up the good works

walter

Posts : 4
Join date : 2014-10-09

STEVEGTI likes this post
